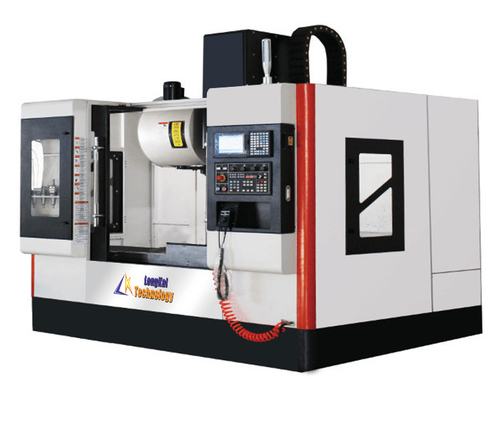

The whole structure is made of high toughness and high grade cast iron. After high efficiency annealing, the internal stress of the material can be effectively eliminated to ensure the best accuracy, stability and durability. The Y axis of the base is designed for the structure of the two- rail rail, the wire gauge is 850 mm, and the support column of the track surface has good stability and rigidity, which is of good quality for the mold manufacturing of general processing.
The counterweight system is equipped with the track of counterweight block, so that the spindle head can obtain support when it moves up and down, and can effectively buckle the machining problem caused by vibration, ensuring the accuracy is stable.
Pillar to big "people" word design of large span, high rigidity and high stability, cooperate with Zhi solid stable base link, more show the accuracy and precision of processing, can achieve perfect requirements.
The saddle and the table are double box design, which can reduce the vibration during processing, so as to ensure the processing accuracy.
